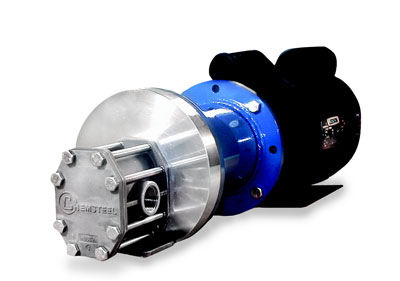

Chemsteel investment cast 316 SS sealless magnetic drive, 30 GPM, 230/460 VAC

DO-70737-50
$8,440.00 USD/EACH

Usually ships in 10 days.
Qty:

  • Self-priming and bidirectional capabilities offer excellent dosing, metering, and transfer of polymers and corrosive chemicals

  • Wear-resistant helical gears offer reduced noise levels of 10 dB

  • Heavy-duty three-piece design combines bearings and wear plates to easily service pump in the field

  • Ryton® or investment cast 316 SS provide excellent compatibility for applications involving corrosive chemicals

Ryton Gear Pumps provide a cost-effective option for pumping a variety of fluids.
Investment Cast 316 SS Sealless Magnetic Drive Pumps provide superior performance in continuous-duty applications. Sealless design is engineered to handle hazardous, toxic, or highly corrosive chemicals.
All pumps are close-coupled to standard 56C-face motors. Motor type is TEFC, totally enclosed, fan-cooled. The 115/230 VAC models are single phase. Three phase motors for variable-speed use with controllers are available. Call our Application Specialists to order. Also, contact our Application Specialists if your maximum viscosity requirements are higher.
Service kits include: drive and idler gears mounted to the shafts, keys, bearings, O-rings, and seal assemblies.
Specifications
Wetted parts 316 SS body, shafts, drive gear, and containment can; PTFE idler gear, bearings, and PTFE encapsulating silicone O-rings
Differential pressure (Max) 110 psig
Max temperature 450°F (232°C)
Max flow rate (GPM) 30
Port size 1-1/2" NPT(F)
Run dry No
Duty cycle continuous
Motor type TEFC
Suction lift 18" Hg
Viscosity 500 cp at 1725 rpm
Power (Hz) 60
Reversible Yes
Dimensions 24"L x 7-7/8"W x 8-3/4"H
Motor (hp) 5
Motor speed 1725 rpm
Power (VAC) 230/460
Brand Chemsteel
Model SM9461FPW-X97
Manufacturer number SM9461FPW-X97
