Home  >  Temperature Measurement Products > Industrial Infrared Sensors > Raytek Compact CM-Series Infrared Sensors

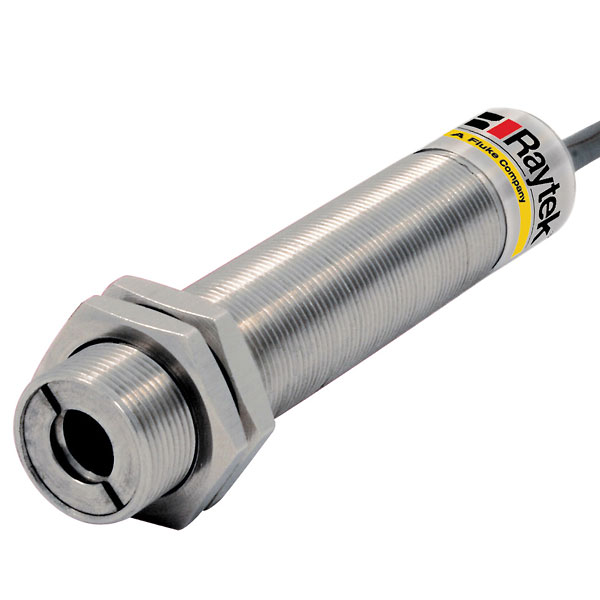

Comapact CM-Series Infrared Sensor Type-K T/C Output with 10' Cable

DO-39660-03
$260.00 USD/EACH

Usually ships in 7 days.
Qty:

  • The Raytek CM Sensor is the ideal solution for both OEM and end-user applications – compact, powerful, affordable and easy to install.

  • Replaces traditional contact probes with a scaleable 0-5 V, type J or K output

  • Wide temperature range: -4ºF to 932ºF (-20 to 500ºC) °

  • Rugged 13:1optics at 90% energy

  • Rugged IP 65 (NEMA-4) stainless steel housing

  • Sensor status/self-diagnostic indicator LED

The Raytek CM Sensor is designed for continuous temperature monitoring in a broad range of manufacturing processes and OEM applications. The sensor provides the advantages of infrared temperature measurement in a powerful, compact, integrated sensor. The CM sensor can easily replace traditional contact probes with a J-type or K-type thermocouple output, or with a user scaleable 0-5 volt output. The sensors onboard electronics are protected by a rugged IP 65 (NEMA-4) stainless steel housing, allowing the sensor to function in ambient temperatures up to 160°F (70°C) without cooling. The built-in sensor health LED provides a convenient on-line indicator of the sensor's operating status and aids in troubleshooting initial sensor set up. Although small in size, the CM is loaded with advanced features including; RS232 digital interface, 24 volt DC alarm, peak hold, valley hold, variable averaging signal processing, adjustable target emissivity settings and adjustable window transmissivity. DataTemp Multidrop software is includes with each sensor allowing the user to configure all programmable sensor variables.
What's Included:
Software
Specifications
Product Type Infrared Sensor
Min temperature (º C) -20
Min temperature (º F) -4
Max temperature (º F) 932
Max temperature (º C) 500
Sighting type LED
Distance to target size ratio 13:1
Emissivity Adjustable
Response time 150 mSec
Brand Raytek
Model RAYCMLTK3

Accessories
Qty/Price
Availability
Mounting Nut (2)
DO-39660-06

at $23.00 USD/EACH

Usually ships in 7 days.
Add to Cart

at $58.00 USD/EACH

Usually ships in 7 days.
Add to Cart
Calibrations
Qty/Price
Availability
NIST-Traceable Calibration; IR Sensors
DO-17101-62

at $130.00 USD/EACH
Usually ships in 8 days.
Add to Cart
