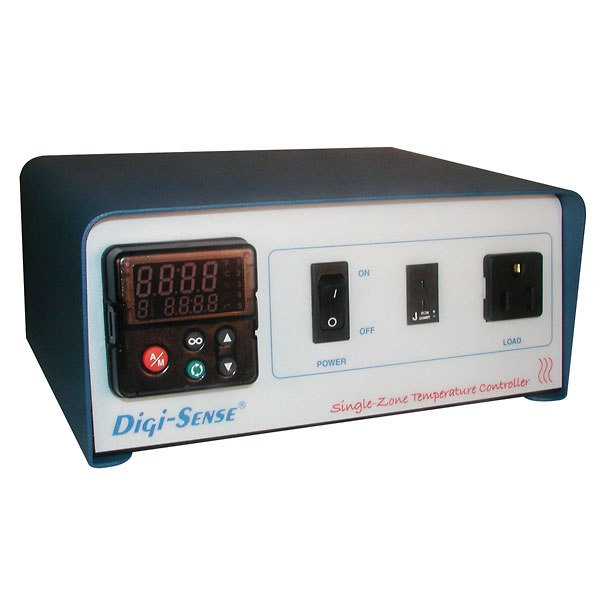

Digi-Sense 1-Zone benchtop dual display temperature control, type K input, 120V, 15 amps

DO-36225-62
$625.00 USD/EACH

  • Perfect for basic temperature control applications

  • Models available for type J, K, or T thermocouples or RTD probes

These temperature controllers display both the setpoint and process temperature and features modern control technology that produces greater temperature stability. The Auto-tune feature minimizes setpoint overshoot and features the ability to learn your process producing greater stability. Changing your setpoint is easily done with the interface keys. The controller can also perform ramp rate operations to allow the user to slowly raise the process temperature. The controller also features an audible alarm output, temperature selectable and one panel mounted receptacle that accept a three-prong plug. Select from models for types J, K, or T thermocouples with miniconnectors, or 100 ohm platinum RTD probes. This unit comes with a lattice support bracket, which is ideal for mounting to maximize space.
What's Included:
6’ detachable power cord and a lattice support bracket
Specifications
Product Type Temperature control, benchtop
Control input (thermocouple) Yes
Control output 1 SSR
Control output SSR
Min temperature (º C) -18
Max temperature (º C) 65
Min temperature (º F) 0
Max temperature (º F) 149
Dimensions (" W) 8
Dimensions (" H) 3-3/8
Dimensions (" D) 6
Display LED
DIN size 1/16"
Resolution 1°, 1.0° or 1.00°
Accuracy 0.1% of span, ±1.0°F/°C
Brand Digi-Sense
Power (VAC) 120

Calibrations
Qty/Price
Availability
NIST-Traceable Calibration; Thermocouple Meter (meter only)
DO-17000-10

at $115.00 USD/EACH
Usually ships in 4 days.
Add to Cart
NIST-Traceable Calibration; Thermocouple Thermometer System (meter + probe)
DO-17002-10

at $160.00 USD/EACH
Usually ships in 6 days.
Add to Cart
