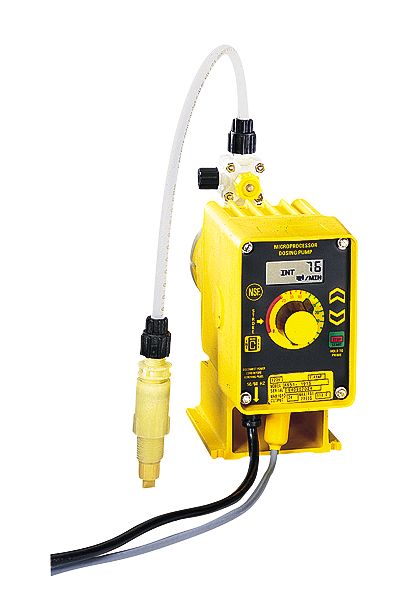

Digital Remote-Control Solenoid-Diaphragm Metering Pump, 2.5 GPH, 230 VAC

DO-74516-25
$1,340.00 USD/EACH

Call 1-888-358-4712 for availability.
Qty:

  • Manually adjustable stroke length and stroke frequency provide precise control of flow rates

  • Clear face cover protects pump controls on low flow models (1 GPH and lower)

  • Chemical-resistant housing provides protection in harsh environments

Microprocessor control and an LCD display provides precise accuracy. Programmable controller features three external control modes—pulse multiply, pulse divide, or 4 to 20 mA response. Pumps allow you to multiply or divide incoming pulse signal by 1 to 999.
Service kits include a replacement diaphragm, seal, four pump head screws, and check valves.
What's Included:
Four-function valve, 16-ft polyethylene tubing, foot valve/strainer, and 8-ft power cord with molded plug
Specifications
Product Type Diaphragm Metering Pumps
Wetted parts PVC head and fittings, ceramic balls, Fluorofilm diaphragm, PVDF/Polyprel seal ring
Max pressure 100 psi
Min flow rate (mL/min) 0.79
Max flow rate (mL/min) 158
Dimensions 13-7/8"L x 5-3/4"W x 10-7/8"H
Remote control input 4 to 20 mA, 0 to 20 mA
Pump type Diaphragm
Power (VAC) 230
Power (Hz) 50
Power (Amps) 1.75
Repeatability ±2%
Port size 3/8" OD
Suction lift (dry) 5 ft
Max temperature (º C) 121
Max temperature (º F) 250
Accuracy ±2%
Brand Siemens
Model B922-398SI
Manufacturer number W2T459384
