- The lightest, most rugged and easiest–to-use professional thermal imagers
- Replaceable and rechargeable Li-ion batteries, with external and internal charging
- Rugged and reliable – engineered and tested to withstand a 6.5ft (2 m) drop
Thermal imaging is a noncontact technology used to help identify potential electrical, mechanical, and process problems from a safe distance. This means you can scan moving, elevated, and high temperature surfaces without needing to get too close. A thermal imager displays an image using different colors to represent different temperatures. These images make it quick and easy to visually check surface temperatures and identify hot spots. All Fluke thermal imagers are fully radiometric, which means they not only graphically display temperature differences, they also measure and store temperatures at every point in the image.

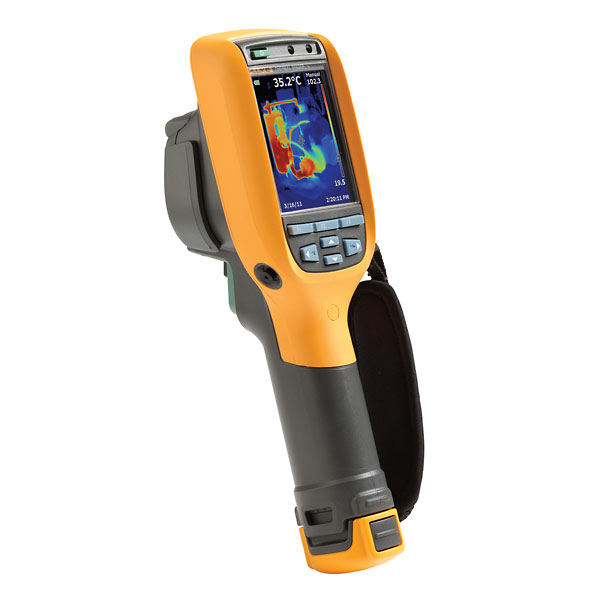

The Ti100 is general-use thermal imager designed for entry-level thermography. Intuitive button menu is easy to use—simply navigate with the push of a thumb. Store images, including thermal image, and temperature data for easy reporting directly into a PC. All data is stored on a 2 GB SD memory card which is included. Additional imager features include large built-in camera lens cover and Smartview® software. SmartView software is a powerful modular suite of software tools for viewing, annotating, editing, and analyzing infrared images.
.• Temperature range of -4 to 482°F (-20 to 250°C)
• Resolution; 160 x 120 (19,200 pixels)
• Field of view (FOV); 22.5 x 31”
• Thermal sensitivity; <0.10°C
• Thermal image only
• 3.5” Color LCD
• Laser pointer
• Adjustable emissivity
• Replaceable Li-Ion rechargeable battery
• Built-in camera lens cover
• IP54 dust/splash-proof housing
• User-friendly controls
• Fixed focus
What's Included:
SmartView analysis and reporting software (with free upgrades through life of product), 2 GB SD memory card, one rechargeable battery, and AC charger/power supply.
| Product Type |
Thermal Imager |
| Dimensions (" W) |
8.6 |
| Dimensions (" H) |
28.4 |
| Dimensions (" L) |
13.5 |
| Software included |
Yes |
| Focus |
Manual |
| Pixels / Thermal Resolution |
19,200 |
| Emissivity |
Fixed |
| Fusion (Picture in Picture) |
No |
| Thermal sensitivity |
<=0.10C at 30C target temp (100 mK) |
| Palette selection |
Blue-Red, Ironbow, Grayscale, Amber |
| FOV |
24° x 17° |
| Detector |
160x120 |
| Detector (Hz) |
9 |
| Display |
3-1/2" |
| Min temperature (º F) |
-14 |
| Max temperature (º F) |
482 |
| Min temperature (º C) |
-20 |
| Max temperature (º C) |
250 |
| Spectral range |
7.5 um to 14 um (long wave) |
| Low battery indicator |
Yes |
| Output |
SD |
| Battery life |
>4 hours continuous per battery pack |
| Accuracy (º C) |
± 2C or 2 % (at 25C nominal, whichever is greater) |
| Battery |
replaceable w/ AC charger |
| Zoom (Digital) |
No |
| Camera |
No |
| Model |
Ti100 |
| Voice Annotation |
No |
| Make |
THERMOGRAPHY |
| Brand |
Fluke |
