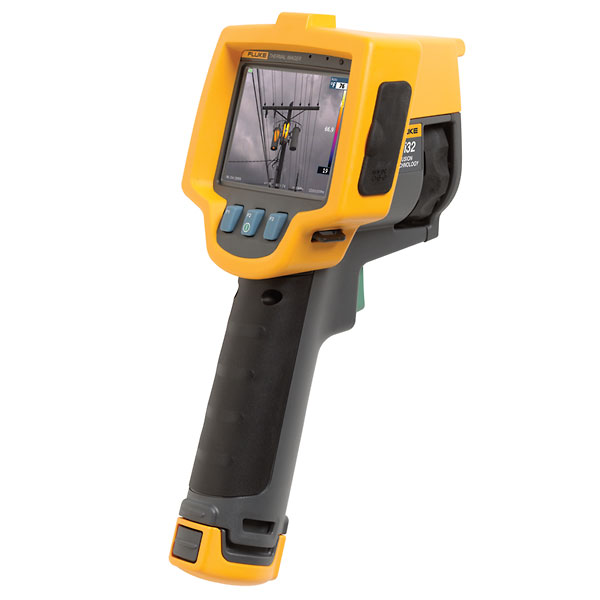

Fluke TiR32 Thermal Imager - Building Industry

DO-39750-27
$7,995.00 USD/EACH

Call 1-888-358-4712 for availability.
Qty:

  • P3-Series of high performance thermal imagers designed to work in the harshest environments with one-handed, easy-to-use interfaces

  • Enhanced detector

  • Optional field-installable telephoto and wide-angle lenses

  • Two replaceable and rechargeable Li-ion batteries, with external and internal charging

  • Rugged and reliable – engineered and tested to withstand a 2 m (6.5 ft) drop

Thermal imaging is a noncontact technology used to help identify potential electrical, mechanical, and process problems from a safe distance. This means you can scan moving, elevated, and high temperature surfaces without needing to get too close. A thermal imager displays an image using different colors to represent different temperatures. These images make it quick and easy to visually check surface temperatures and identify hot spots. All Fluke thermal imagers are fully radiometric, which means they not only graphically display temperature differences, they also measure and store temperatures at every point in the image. A thermal image alone can sometimes be difficult to understand, which is why the Fluke Ti series come standard with IR-Fusion®, which is the marriage of visible and thermal images. These images are atomically blended together, allowing you to always know exactly what you’re looking at.

Enhanced features include detection and analysis capabilities to deliver crisp, clear images. Simply scroll through the different viewing modes to better identify trouble areas. Intuitive, three-button menu is easy to use—simply navigate with the push of a thumb. Store 1200 IR-Fusion images, including thermal image, visual image, and temperature data for easy reporting directly into a PC. All data is stored on a 2 GB SD memory card which is included.

Other imager features include large landscape-format LCD, adjustable backlit display, selectable on-screen viewing modes, temperature alarms, voice annotation, emissivity correct, built-in camera lens cover, and Smartview™ software. SmartView software is a powerful modular suite of software tools for viewing, annotating, editing, and analyzing infrared images.
The Ti32 also includes the ability to record a voice annotation with every image. Other unique features include enhanced thermal sensitivity, greater range of temperature measurement, larger selection of viewing modes, and on-screen emissivity correction.
What's Included:
SmartView analysis and reporting software (with free upgrades through life of product), 2 GB SD memory card, card reader for downloading images into your computer, hard carry case, portable soft carry case, hand strap, two rechargeable batteries, external battery charger, and AC charger/power supply.
Specifications
Product Type Thermal Imager
Software included Yes
Focus Manual
Pixels / Thermal Resolution 76,800
Emissivity Adjustable
Thermal sensitivity <=0.05°C at 30°C (50mK)
Palette selection Ironbow, Blue-Red, High Contrast, Amber Inverted, Hot Metal, Greyscale, Greyscale Inverted
FOV 23° x 17°
Detector 320x240
Detector (Hz) 60
Display 3.6"
Min temperature (º F) -4
Max temperature (º F) 302
Min temperature (º C) -20
Max temperature (º C) 150
Image Annotation Voice
Output SD
Battery life 4+ hours continuous use per battery pack
Accuracy (º C) greater of ±2°C or 2% at 25°C nominal
Battery Removable, rechargeable Li-ion
Model TiR32
Make THERMOGRAPHY
Brand Fluke
