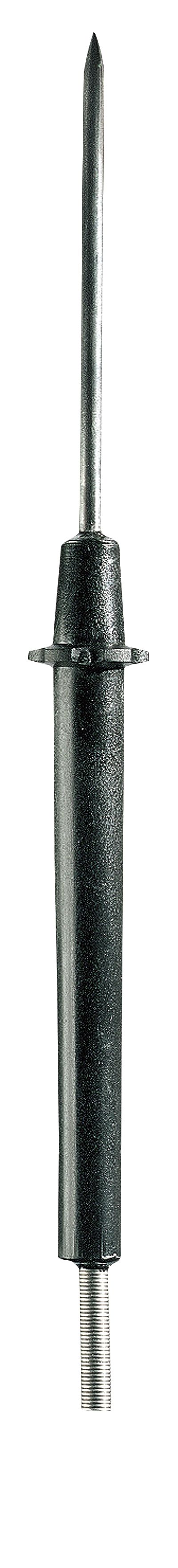

Integral Handle RTD Probe; General-Purpose Immersion, with ANSI Connector, 10" Length

DO-93831-70
$110.00 USD/EACH

Call 1-888-358-4712 for availability.
Qty:
    If you don't see the probe you need, we can make it. Call our Application Specialists for details.
    Maximum error for probe assembly is ±1.1°C + 0.12% of reading below 300°F, ±0.35% of reading above 300°F. Alpha coefficient is 0.003850 Ω/Ω/°C (DIN IEC 751). Resistance at ice point (0°C) is 100 Ω. Note:Each probe has a characteristic time constant; five time constants are needed to reach 99% of final reading.
    Specifications
    Product Type RTD Probe
    Min temperature (º F) -58
    Max temperature (º F) 932
    Min temperature (º C) -50
    Max temperature (º C) 500
    Probe length (in.) 10
    Diameter (mm) 4.8
    Diameter (inches) 0.188
    Temp range -58 to 932°F (-50 to 500°C)
    Time constant 10 seconds
    Sheath material 316 SS
    Handle 5.5"L glass-filled nylon
    Brand Oakton

    Calibrations
    Qty/Price
    Availability
    NIST-Traceable Calibration; RTD Probe (probe only)
    DO-17001-04

    at $130.00 USD/EACH
    Usually ships in 6 days.
    Add to Cart
    NIST-Traceable Calibration; RTD Meter & Probe System
    DO-17002-04

    at $160.00 USD/EACH
    Usually ships in 6 days.
    Add to Cart
