Martel BetaGauge PI Pro Digital Pressure Gauge Kit, 1,000 psi

DO-68437-75
$2,030.00 USD/EACH

Usually ships in 14 days.
Qty:

  • Displays in 18 standard or fully custom engineering units

  • Very high accuracy compared to analog test gauges; ±0.05% F. S.; temperature compensated

  • Temperature-compensated accuracy over 0 to 50°C

  • Seventeen (17) standard pressure ranges

  • Displays ambient temperature in °C or °F

  • Large, backlit, 5-1/2 digit display with 0.65" high digits and 20 segment bar graph

  • Rugged stainless steel case meets NEMA 4/IP65

  • Password-protected “through the keypad” calibration

  • Min/Max recall

  • Adjustable tare zeros large system offsets

  • User-configurable sample rate maximizes measurement performance and battery life

  • User-configurable damping smooths readings from pulsating/plant air sources

  • Auto Shut-off for extended battery life

  • Low battery indicator

  • BetaLog software for data logging pressure measurements available

  • Available with 24 V external power input

  • Rubber boot included on all standard bottom-mount gauges and kits

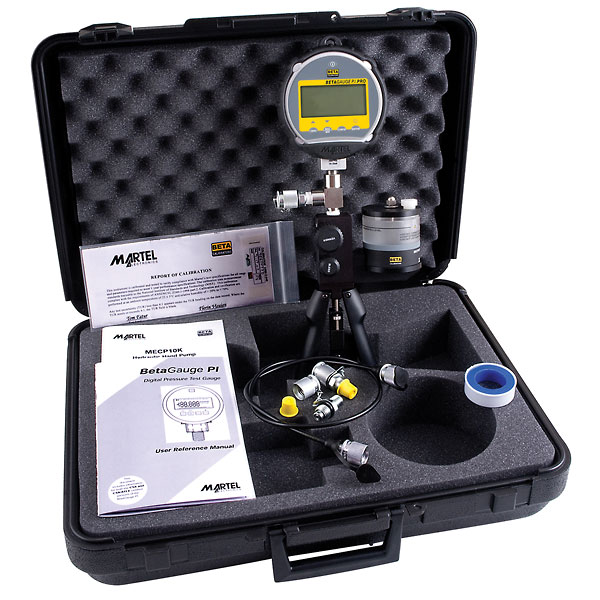

  • Kit includes: Pump, gauge, test hose, rubber boot, carrying case, and an NIST-traceable calibration report supplied by the manufacturer.

The BetaGauge P.I. Digital Pressure Test Gauge takes the concept of an analog Test Gauge, and brings it to a new level, as only Martel Electronics can do. The BetaGauge P.I. combines the accuracy of digital technology with the simplicity of an analog gauge, and achieves performance, ease-of-use, and a feature set unmatched in the pressure measurement world.
What's Included:
Standard accessories include: Manual and batteries
Specifications
Product Type Digital pressure test kit
Range 1000 psi
Media compatibility liquids and gases compatible with 316 SS
Display 5-digit LCD, 0.65"H
Operating temperature 14 to 131°F (-10 to 55°C)
Battery life 1500 hours without backlight, 2000 hours at slow sample rate
Accuracy ±0.05% full-scale
Dimensions 4-3/8" x 5" x 1-1/2" (W x H x D)
Power Three AA batteries
Brand Martel Electronics
Model 1919223
