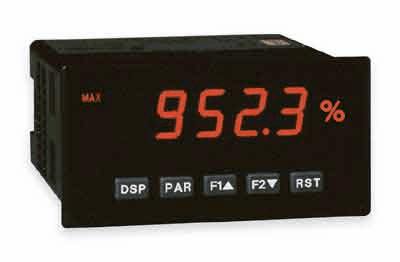

PAXH0000, Red Lion 1/8 DIN True RMS AC Voltage / Current Panel Meter AC Voltage 200mV, 2V, 20V, 300VAC, Current 200uA, 2mA, 200mA, 5A, 85-250VAC

DO-65590-16
$323.00 USD/EACH

Usually ships in 4 days.
Qty:

  • Process, Voltage, Current, Temperature, And Strain Gauge Inputs

  • 5-Digit 0.56'' Red Sunlight Readable Display

  • Variable Intensity Display

  • 16 Point Scaling For Non-Linear Processprogrammable Function Keys/User Inputs

  • 9 Digit Totalizer (Integrator) With Batching

  • Optional Custom Units Overlay W/Backlight

  • Our Setpoint Alarm Outputs (W/Option Card)

  • Communication And Bus Capabilities (W/Option Card)

  • Retransmitted Analog Output (W/Option Card)

  • Crimson Programming Software

  • NEMA 4X/IP65 Sealed Front Bezel

PART NUMBERS REPRESENT VARIOUS MODELS AND FEATURES. SOME PART NUMBERS ARE OUTPUT OR COMMUNICATIONS CARDS

The PAX® Analog Panel Meters offer many features and performance capabilities to suit a wide range of industrial applications. Available in five different models to handle various analog inputs, including DC Voltage/Current, AC Voltage/Current, Process, Temperature, and Strain gauge Inputs. The optional plug-in output cards allow the opportunity to configure the meter for present applications, while providing easy upgrades for future needs. The meters employ a bright 0.56'' LED display. The unit is available with a red sunlight readable or a standard green LED. The intensity of display can be adjusted from dark room applications up to sunlight readable, making it ideal for viewing in bright light applications.

The meters provide a MAX and MIN reading memory with programmable capture time. The capture time is used to prevent detection of false max or min readings which may occur during start-up or unusual process events.

The signal totalizer (integrator) can be used to compute a time-input product. This can be used to provide a readout of totalized flow, calculate service intervals of motors or pumps, etc. The totalizer can also accumulate batch weighing operations.

The meters have four setpoint outputs, implemented on Plug-in option cards. The Plug-in cards provide dual FORM-C relays (5A), quad FORM-A (3A), or either quad sinking or quad sourcing open collector logic outputs. The setpoint alarms can be configured to suit a variety of control and alarm requirements.
Specifications
Product Type Voltage/Current panel meters
Description 1/8 DIN True RMS AC Voltage / Current Panel Meter
CE Compliance Yes
Power (VAC) 85 to 250
AC Current (Input) 200 µA, 2 mA, 200 mA, 5 A
AC Voltage (Input) 200 mV, 2 V, 20 V, 300 VAC
Display 5-digit, 0.56" (14.2 mm) Red LED, (-19999 to 99999)
Operating conditions 0 to 50°C
Enclosure NEMA 4X / IP65
Brand Red Lion
Model PAXH0000
