Home  >  Phys D - Force - Thickness > Industrial Thickness Gauges > Phase II Ultrasonic Hardness Tester

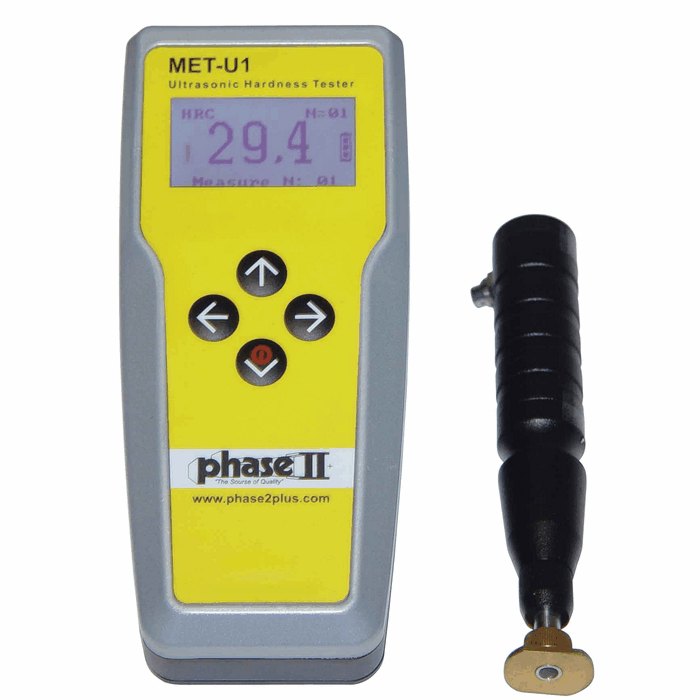

Phase II Ultrasonic Hardness Tester, with 15N handheld probe

DO-59977-40
$5,395.00 USD/EACH

Usually ships in 7 days.
Qty:

  • Non-destructive—no need to throw the part away after testing

  • Requires a sample area with a radius of only 5 mm and a thickness down to 1 mm

  • Conforms to ASTM A1038-05 specifications

Obtain accurate measurements of steel, cast steel, alloy steel, stainless steel, cast iron, cast aluminum alloy, brass, bronze, and copper. The testing method is based on the measurement of the ultrasonic-vibrational frequency shift of a resonating rod when pressed against the sample. Meter features easy to follow menu-driven operation, a backlit LCD, and USB interface. Display mean value and convert between Brinell, Rockwell, Vicker, and Leeb hardness values. Store up to 100 readings for recall or download.
What's Included:
calibrated test block, battery charger, and carrying case.
Specifications
Product Type Hardness Testers
Description Ultrasonic hardness tester
Min sample thickness (") 0.040
Min sample thickness (mm) 1
Min radius for test (") 0.2
Min radius for test (mm) 5
Range 20 to 67 HRC, 59 to 99 HRB,
75 to 650 HB, 75 to 1000 HV,
200 to 900 HL
Accuracy ±3.6%
Measured area 5 mm diameter
Operating temperature (°F) 5 to 104
Operating temperature (°C) -15 to 40
Handheld probe type (N) 15
Handheld probe type (kgf) 1.5
Dimensions 79 x 144 x 294 mm
Dimensions (" W) 3.125
Dimensions (" H) 5.6875
Dimensions (" D) 1.5625
Display LCD
Brand Phase II
Power Rechargeable NiMH (size C)
Model MET-U1

Calibrations
Qty/Price
Availability
NIST-Traceable Calibration; Misc. Dimension
DO-17050-11

at $85.00 USD/EACH
Usually ships in 12 days.
