Pressure, Rh, And Temperature Transmitter (no Display - Wall Mount)

DO-37463-11
$2,260.00 USD/EACH

Call 1-888-358-4712 for availability.
Qty:

  • Barometric pressure, humidity and temperature measurement in one transmitter

  • Vaisala sensors provide proven, accurate, and reliable measurement with excellent long-term stability

  • Three analog outputs and a serial interface

  • NIST-traceable calibration

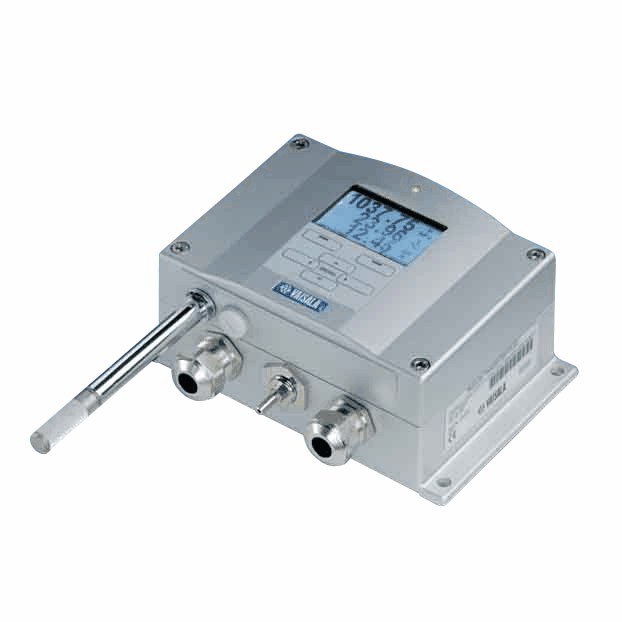

  • Picture is shown with a display, however product does not come with a display.

The Vaisala PTU-series transmitters are designed for demanding industrial and laboratory applications where multiple environmental conditions need to be monitored. Typical applications include environmental monitoring in calibration laboratories, industrial test cells, and weather stations. The PTU transmitter uses Vaisala's BAROCAP® sensor for pressure, HUMICAP® sensor for humidity, and a platinum RTD sensor for temperature-all known for their high accuracy and excellent long-term stability.
These versatile, multipurpose transmitters feature three analog outputs and a RS-232 serial interface which is compatible with major GPS receivers and NMEA-coded messages. Models 37463-12 and-14 feature a graphic/numeric display and an easy-to-use, menu-based user interface. All models having da
What's Included:
NIST-traceable calibration certificate.
Specifications
RH range 0 to 100%
Product Type Pressure/Relative Humidity/Temperature Transmitters
RH accuracy ±1 %RH (0 to 90 %), ±1.7 %RH (90 to 100 %RH)
Response time 30 seconds
Output 4 to 20 mA
Min temperature (º F) -40
Min temperature (º C) -40
Max temperature (º F) 140
Max temperature (º C) 60
Temp accuracy ±4°F (± 0.2 °C)
Power 10 to 35 VDC
Pressure 500 to 1100 hPa Class B calibration
Dimensions 7.25 in W x 4.5 in H x 3 in D
Brand Vaisala
Model PTU30012A00A1BCPB1B0A1AAD0B0A
Manufacturer number PTU30012A00A1BCPB1B0A1AAD0B0A
