Home  >  Pressure Measurement > Meters, Indicators, and Controllers > Ashcroft Single/Dual Sensor Pressure Testers > Additional Sensors > Series 2 Sensors - 0.025% Accuracy > Ashcroft Series 2 Pressure Sensors in Ranges in PSI - Absolute
Sorry, this item is now discontinued. Please browse similar items.
or Contact us for more information.

Pressure Sensor For PT1 Pressure Testers, 300 PSIA

DO-68331-75
$1,070.00 USD/EACH

Discontinued
Qty:

  • Features at a touch...

  • Push-button zero adjust

  • Min/Max memory

  • Variable damping

  • Selectable engineering units

  • Tare

  • Backlit display

  • Port Select Options

  • Rechargeable batteries

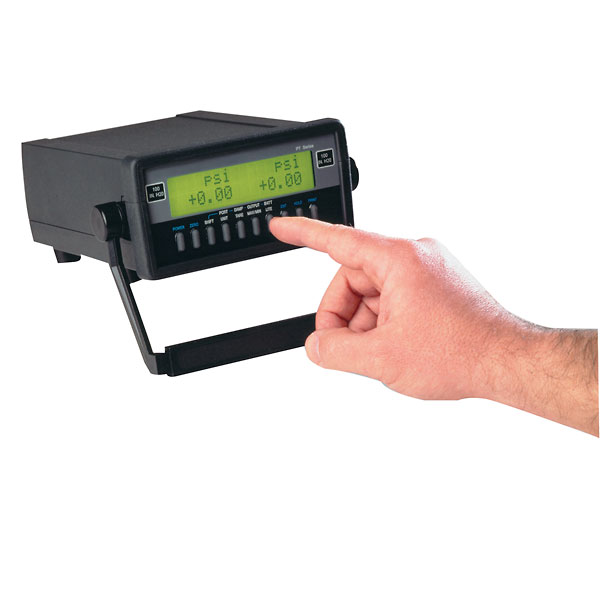

This indicator is an extremely versatile pressure measurement and test instrument. Each indicator provides the ability to select any of twelve factory programmed engineering units, monitor and display minimum and maximum pressure values, program damping, tare out displayed measurement values and communicate over the standard RS-232 interface. Also features two channel simultaneous measurement and display of pressures with simple installation of second fixed sensor All these capabilities are accessible through easy-to-follow keypad functions as well as over the RS-232 interface.
Specifications
Product Type Digital pressure testers
Media compatibility liquids and gases compatible with 316 SS
Accuracy ±0.025%
Resolution ±0.002% full-scale
Output RS-232
Range 0 to 300 psia
Max pressure (psi) 300
Battery life 25 hours (nominal)
Power 110/220 VAC, 50/60 Hz; optional NiCd pack
Brand Ashcroft
Model PPT2DIAPSI 300A

Calibrations
Qty/Price
Availability
NIST-Traceable Calibration; Pressure / Vacuum (For gauges with accuracy 0.75% or < 0.75%)
DO-17040-12

at $140.00 USD/EACH
Usually ships in 5 days.
Add to Cart
