Sorry, this item is now discontinued but has a suggested replacement.
You can compare specifications to the suggested replacement DO-8653613, browse similar items or Contact us for more information.

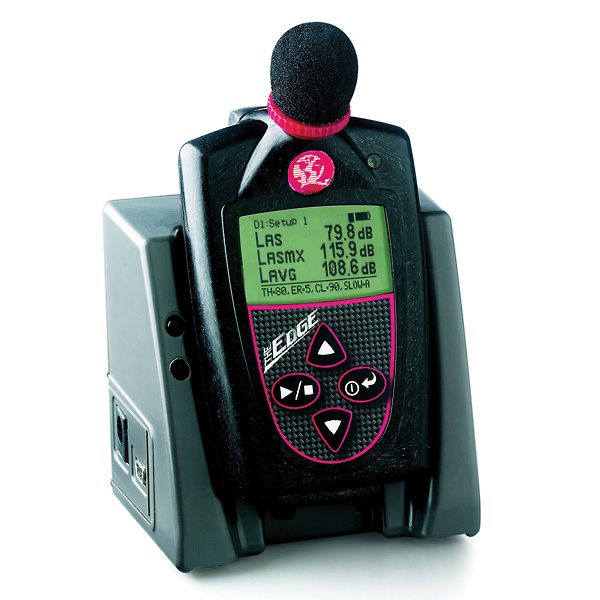

Quest Technologies EDGE 5 Intrinsically Safe Noise Dosimeter with QC-10 Calibrator, 1/4" microphone, docking station, 2 windscreens, calibrator adapter, USB cable, power supply and storage case

DO-50512-20
$2,592.00 USD/EACH

Discontinued
Qty:

  • Cable-free units allow you to view measurement levels in real time

  • Cable-free design eliminates microphone cables

  • Thin, contoured shoulder mount design comfortably hugs your shoulder

  • Rechargeable lithium polymer battery provides long life

  • Docking stations provide quick and easy recharge, and easy downloading of data (included only with models 50512-02, -04, -06, -10, -12, -14, -18, -20, -22)

  • Model eg5 meets American and International standards for intrinsic safety for use in explosive environments

  • ANSI S1.25 rated

  • IEC61265 compliant for personal sound exposure meters

  • Lock out security function

These thin, lightweight cable-free dosimeters eliminate cable interference while you work. Unlke any other dosimeters on the market these units allow you to display SPL, Dose, Lavg, Leq, TWA, max/min/peak level, exposure, and run time all while in run mode. The bright LCD display provides a visual indicator when limits have been ecxeeded ensuring optimal safety. Select models that include docking stations (50512-02, -04, -06, -10, -12, -14, -18, -20, -22) allow you to download data to QestSuite Professional II software (software included with 50512-06, -14, and -22 models only) from each dosimeter, via docks USB port, and flash red when charging units and solid green when charging is complete.
Select from three easy-to-use models based on your measurement data and environment needs. Model eg3 features summary data reports, while the eg4 advanced model provides dual dosimeter and datalogging/time history. The eg5 model is an intrinsically safe unit and features simultaneous C-weighted and A-weighted measurment capability. Models eg3 and eg4 provide over 60 hours of run time and intrinsically safe model eg5 provides 40 hours offering long run rates between charges.
What's Included:
standard dosimeters include 1/4" microphone, 2 windscreens, calibrator adapter, and storage case. All -D models also include single docking station, USB cable, and power supply. All -D-10 models include single docking station, USB cable, power supply, and QC-10 calibrator. All -D-10QSPII models include single docking station, USB cable, power supply, QC-10 calibrator, and QuestSuite Professional II software.
Specifications
Product Type Noise Dosimeters
Description Same as eg5-D plus QC-10 calibrator
Criterion level 70 dB to 90 dB in 1 dB increments
Exchange rate 3, 4, or 5 dB
Threshold level 70 dB to 90 dB or none
Weighting RMS A and C; Peak A, C, or Z
Instrument wt 3 oz (85 g)
Resolution (dB) 0.1
Compliance IEC 61252, ANSI S1.25
Function SPL, Lavg, Leq, TWA, min/max, peak, exposure, run time, Lc-a, dose, datalogging, fast/slow response
Display Backlit 128 x 64 LCD
Dimensions 3.5 in L x 2.1 in W x .75 in H (88 x 53 x 19mm)
Brand Quest Technologies
Manufacturer number EG5-D-10
Model eg5-D-10
