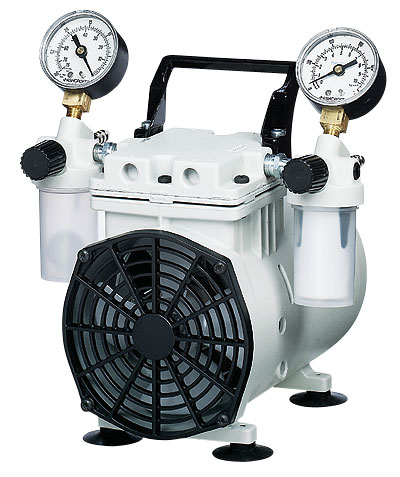

DO-79204-05
- Ideal for filtering, aspirating, degassing, and desiccating
- Pumps do not require water or oil to operate.
- Water trap prevents liquid from being drawn into the pump.
- Muffler provides quiet operation.
Note: Avoid using pump with organic, acidic, or basic vapors.
What’s included: muffler, water trap, carrying handle, suction cup feet, on/off switch, two ¼" barbed fittings, and a 6-ft cord (the 115 VAC models come with a standard U.S. plug; 230 VAC models come with a European plug).
Service kits include: connecting rod assembly, two handle screws, four head screws, O-ring head and cylinder, valve plate assembly, plastic jar, filter element, ball, and gasket.
| Max vacuum |
Ultimate: 26.0" Hg (880 mbar) |
| Free-air capacity |
0.67 cfm (19 L/min) |
| Port size |
1/4" ID |
| Max temperature |
104°F (40°C) |
| Motor type |
Split phase |
| Duty cycle |
continuous |
| hp |
1/8 hp |
| Wetted parts |
aluminum (treated for corrosion resistance), stainless steel, and PTFE |
| Dimensions |
8"L x 8-13/16"W x 10"H |
| Amps |
1.3 A |
| Power |
230 VAC, 50 Hz |
| Model |
2522C-02 |
at $935.00 USD/EACH
Call 1-888-358-4712 for availability.
at $2,320.00 USD/EACH
Usually ships in 4 days.
at $80.00 USD/EACH
Usually ships in 14 days.
