Home  >  Temperature Measurement Products > Industrial Infrared Sensors > Raytek Process Thermometer Infrared System > 1/8-DIN Meters

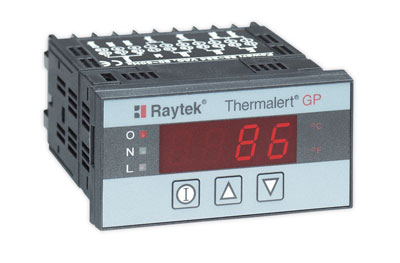

Standard infrared meter with two 5 VDC alarm outputs

DO-39671-00
$454.00 USD/EACH

Call 1-888-358-4712 for availability.
Qty:

  • Advanced infrared processing capabilities including peak hold, valley hold, averaging, and a user-adjustable offset

  • Dual setpoints and deadband alarm outputs

Use the standard meter for noncontact monitoring of your temperature-sensitive applications, or choose the deluxe meter with built-in relays to monitor and control your applications. The deluxe meter features two 3 amp relays that can be used to turn on and off other equipment. All program parameters and settings are easily accessed through the front panel keys. Order sensors, solid-state relays, and cables separately.
Specifications
Product Type Infrared temperature meters
Control input (thermocouple) Yes
Control input (VDC) 0 to 5
Control input (mA) 4 to 20
Control output 1 Alarm: 5 VDC
Control output 2 Alarm: 5 VDC
Alarm output Yes
Min temperature (º C) 0
Max temperature (º C) 50
Min temperature (º F) 32
Max temperature (º F) 120
Display four-digit, seven segment, 0.5 in H LED
DIN size 1/8"
Panel cutout 92 mm W x 44 mm H
Accuracy ±1% of measured value or ±2°F (±1°C), whichever is greater
Brand Raytek
Power (VAC) 110 to 220
