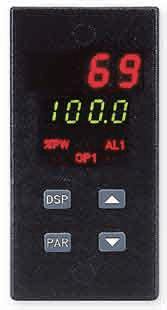

TCU11002: W/ Nema 4X Cooling Alarm & Analog

DO-68486-93
$399.00 USD/EACH

Usually ships in 5 days.
Qty:
    FEATURES
    • Accepts 10 different types of temperature sensor inputs (Thermocouple Types T, E, J, K, R, S, B, N, -5 to 56mV, 100 Ohm Platinum RTD, 120 Ohm Nickel RTD)
    • Full PID control with reduced overshoot
    • Status indicators for outputs and control modes
    • Programmable user input (digital) for added flexibility
    • Manual/Automatic and Local/Remote setpoint control modes
    • Setpoint ramping for process start-up
    • Field replaceable and interchangeable output modules (Relay, Logic/SSR Drive and Triac)
    • 100 msec sampling period with 0.15% accuracy
    • On-demand auto-tuning of PID control settings
    • Dual LED displays for simultaneous indication of temperature and setpoint, second analog input or heater current * Note: Output modules ARE NOT supplied with the controller. All output modules are packaged separately and must be installed by the user. When selecting the controller, be sure to purchase the appropriate output module for the main control output and if necessary, the alarm output(s), the cooling output, and valve positioner outputs. The controller can be fitted with any combination of output modules. The logic/SSR Drive Module is a switched DC source, intended to drive the DC input of an SSR power unit. It should never be connected to line voltage.
      Specifications
      Product Type Temperature control
      Control input (thermocouple) Yes
      Control input (RTD) Yes
      Control output 1 Cooling
      Control output 2 Analog
      Alarm output Yes
      Min temperature (º C) 0
      Max temperature (º C) 50
      Display 4-digit, dual
      DIN size 1/8"
      Accuracy ±0.15%
      Brand Red Lion
      Model TCU11002
      Power (VAC) 115/230
