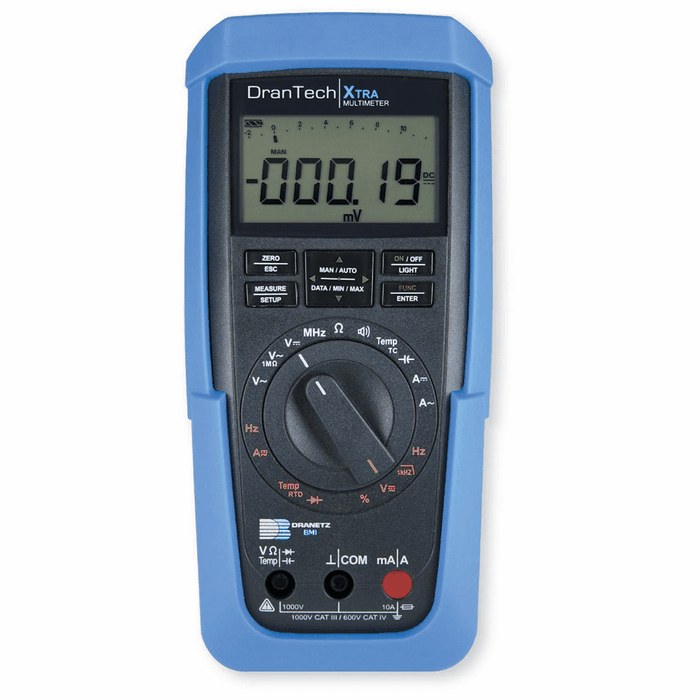

TRMS System Multimeter Kit with Logging Software

DO-20005-17
$990.00 USD/EACH

Usually ships in 7 days.
Qty:
    The multimeter is suitable for universal use in electrical engineering, electrical installation, laboratory applications, telecommunication, training etc. The instrument can be used in the field and is equipped with internal, mains-independent supply power. Three Connector Jacks with Automatic Blocking Sockets(ABS) *All current ranges are implemented via a single connector jack which prevents any possibility of operator error. Beyond this, the automatic blocking sockets prevent incorrect connection of the measurement cables, as well as selection of the wrong measured quantity. Danger to the user, the instrument and the device under test resulting from operator error is thus ruled out.DranWin10 software is a multi-lingual, measurement data logging program for recording, visualizing, evaluating and documenting measured values from Dranetz multimeters with reference to time.
    • Rugged, reliable digital multimeters with housings made of impact-resistant plastic
    • Analog bar graph for dynamic processes
    • 500 kB data memory as data logger for long-term measurements
    • Power pack connector socket for operation without batteries
    • Infrared interface for communication with the PC
    • Comes with a hard case, protective rubber boot and calibration certificate
    • 3 year warranty
    Specifications
    Product Type Multimeter
    AC Max (Voltage) 1000
    AC Min (Voltage) 0.01
    DC voltage range 10uV to 1000V AC/DC
    Resistance range 0.01A to 30M ohm
    Current (AC/DC) range 10µ to 10A AC/DC (Xtra) 1µ to 10A (Pro)
    Resolution 4.5 digits, (60,000 counts)
    Safety rating CAT III 1000V, CAT IV 600V
    Display Large, light-blue illuminated display with extra large characters
    Dimensions (" W) 7.9
    Dimensions (" H) 3.4
    Dimensions (" D) 1.8
    Brand Dranetz
    Model M240H

    Calibrations
    Qty/Price
    Availability
    NIST-Traceable Calibration; Multimeter, Handheld 4.5-digit
    DO-17090-00

    at $75.00 USD/EACH
    Usually ships in 6 days.
