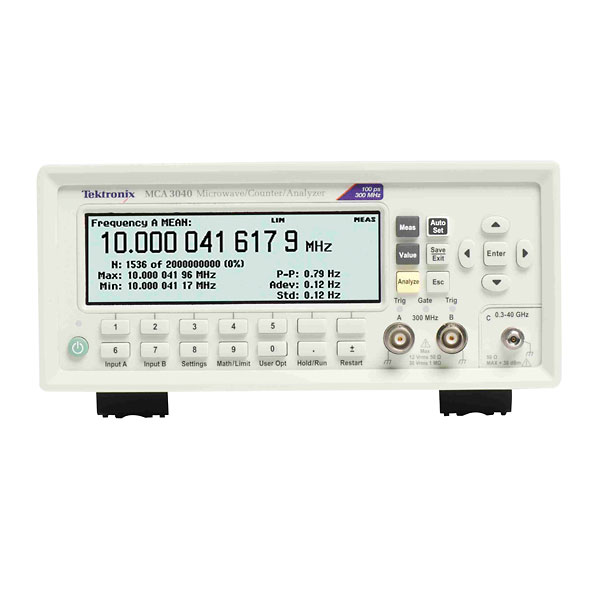

Tektronix MCA3040 Frequency Counter Analyzer, 40 GHz, 100ps

DO-20038-07
$13,000.00 USD/EACH

Call 1-888-358-4712 for availability.
Qty:

  • Available for sale in the United States only

  • Feature-rich tools for precision measurements industry-leading performance for demanding designs

  • Performance Specifications

  • 27 GHz and 40 GHz models

  • Microwave analyzer channel with CW or Burst

  • Two 300 MHz general-purpose channels

  • –35 dBm to +10 dBm power range

  • 100 ps single-shot time resolution

  • 12 digits frequency resolution, 14 digit display

  • 25 ms (auto) or zero (manual) acquisition time

  • 3 mV Voltage resolution

  • Measurement Throughput

  • 250k sample data transfer rate to internal memory (Up to 750k samples stored)

  • 5k Sample data transfer rate over USB/GPIB Bus (Block mode)

  • Functions and Features

  • Automated Measurements: frequency, period, Rrtio, time interval, time interval error, pulse width, Rise/fall time, phase angle, duty cycle, max voltage, min voltage, peak-to-peak voltage

  • Integrated power meter

  • Multi-parameter display

  • Trend plot, measurement statistics, and histogram mode

  • Allan deviation

  • Zero dead-time frequency/period measurements

  • Connectivity

  • USB device and GPIB ports on rear panel for quick PC connectivity

  • GPIB interface supports full SCPI-compatible programmability and offers an emulation mode for plug-and-play replacement in existing ATE systems

  • External arming input

  • 10 MHz reference oscillator output

  • Includes National Instrument’s LabVIEW SignalExpress™ TE Limited Edition Software for connecting your bench

  • Optional TimeView™ Software available for modulation domain analysis

The MCA3000 Microwave Counter Series outperforms every microwave counter on the market today in terms of resolution, speed, and acquisition time. Including an integrated power meter, the MCA Series packs many different functions into one feature-rich instrument. With industry-leading frequency and time resolution, the MCA Series comes standard with internal memory and a fast data transfer rate of
250k Samples/s to memory. In addition, the multi-parameter display shows auxiliary measurements alongside your main measurement to provide you with the results you need at a glance. With the industry’s most comprehensive analysis modes, including measurement statistics, histograms, and trend plots, you have the tools you need to quickly and accurately analyze your signal.
Besides being an outstanding microwave counter, the MCA3000 Series also
serves as a general-purpose timer/counter with two additional 300 MHz inputs.
The MCA Microwave Counter Series offers industry-best throughput, saving you up to 90% on your testing time compared to other microwave timer/counters on the market. Up to 250,000 measurement results per second can be stored in the internal memory. Alternatively, you can transfer up to 5,000 measurement results per second in Block mode through the GPIB or USB interface.
With an integrated power meter, the MCA Series provides measurement of frequency and power with a single connection at any supported frequencylevel. For the first time, variations in signal power can be seen, collected, and analyzed in the same manner as frequency, both numerically and graphically. With 0.01 dBm at 100 ms measuring time resolution and a wide power range from –35 dBm to +10 dBm, you have the flexibility for a broad range of power measurement applications.
With the unique display of the MCA Series, you can measure multiple parameters of the same signal from one test connection. To reveal signal quality issues like drift, intermittent transients, and stability, you can view the data as a real-time trend plot or a histogram with the MCA Series graphical display mode, or you can use measurement statistics to track how signal parameters are changing over time. A single-button Analyze mode gives you fast insight into the behavior of your device right on the timer/counter’s display.
With 3 input channels, you can measure the relationship between different signals. For example, you can measure the phase relationship between the input and output signals of your device. You can read other critical parameters simultaneously, such as the test frequency of the signal and the voltage ratio (in dB), in one glance with the multi-parameter display.
Connect to your PC with the rear-panel GPIB or USB device ports. The GPIB interface operates in SCPI/GPIB for plug-and-play replacement in existing ATE systems or easy integration into larger test systems. If desired, an emulation mode for existing timer/counters is available.
Easily capture, save, and analyze measurement results from your MCA Microwave Counter Series with the special Tektronix Edition of National Instruments LabVIEW SignalExpress™ software. Every MCA3027 and MCA3040 ships with a free copy of the Limited Edition version of SignalExpress for basic instrument control, data logging, and analysis. The optional Professional Edition offers over 200 built-in functions that provide additional signal processing, advanced analysis, sweeping, limit testing, and user-defined step capabilities.
What's Included:
Microwave/Counter, line cord, calibration certificate, Quick Start User Manual, CD-ROM with user manual (English, French, German, Spanish, Simplified Chinese, Traditional Chinese, Korean, Russian, Japanese), Programmer’s Guide, Technical Specifications, Trial version of TimeView™ Software, and CD-ROM with National Instruments LabVIEW SignalExpress™ Tektronix Edition, Limited Edition Software
Specifications
Product Type Frequency Counter Analyzers
Display Backlit LCD with dual numeric and graphical auxiliary parameters
Analysis Statistics, Histogram, and Trend plot
Connectivity GPIB/USB
Frequency range 40 GHz
Resolution frequency 12 digits/s; 12 digits/s
Resolution time 100 ps
Voltage resolution 3 mV
Measurement speed 250 k measurements/s
Software NI LabVIEW Signal Express Tektronix Edition, TimeView MDA
Memory 750 k
Model MCA3040
Brand Tektronix
Dimensions 8.25 in W x 3.6 in H x 15.6 in D (210 x 90 x 395)
Manufacturer number MCA3040
