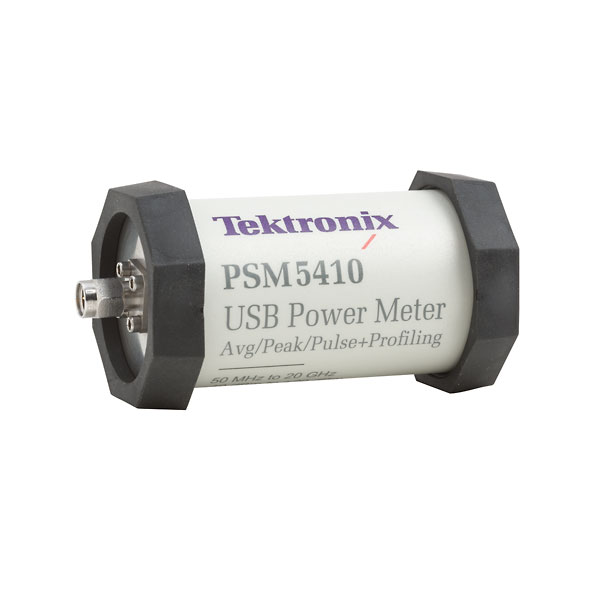

Tektronix PSM5410 USB Power Sensor/Meter, 50 MHz to 20 GHz, Pulse profiling, 3.5 mm male

DO-20043-26
$6,380.00 USD/EACH

Call 1-888-358-4712 for availability.
Qty:

  • Power sensors feature the industry’s fastest measurement speed of 2000 readings/s

  • Available for sale in the United States only

  • Meters are calibrated over full temperature range – No zero or calibration needed before making measurements, saving time and avoiding poor quality data

  • Average power, duty cycle corrected pulse power, and measurement logging included on all models

  • Features max hold and relative measurement modes

  • Offset, frequency response, and 75 Ù minimum loss pad correction

  • Flexible averaging modes for quick, stable measurements

  • TTL Trigger input and output allows synchronization with external instruments

  • Pass/Fail limit mode

These compact PSM series power sensors/meters deliver fast, accurate RF and microwave power measurements. Select from a broad range of CW and pulse modulation measurement capabilities depending on the series you choose. All sensors/meters come with Windows Power Meter application software for controlling the sensors/meters, displaying readings, and recording data. The Windows pull-down menus provide additional controls and data is immediately available on your PC for analysis and documentation. The combination of the sensor/meter and PC provides a complete solution, eliminating the need for a separate, dedicated meter mainframe.

The PSM3000 Series provide true average power measurements with accurate power measurements independent of signal modulation and bandwidth. The PSM4000 Series delivers average power (CW) measurements, and adds pulse and peak power measurements for gathering basic data on pulsed RF and microwave signals. The PSM5000 Series provide the same measurements as the PSM4000 Series, and add pulse profiling capability for signal viewing and characterization in pulsed RF and microwave systems.
What's Included:
USB Power sensor/meter, 2-meter USB cable, USB flash drive, and calibration document with data supplied by the manufacturer.
Specifications
Product Type Power Sensor/Meter
Sensor (type) Pulse profiling
Frequency range (min) 50 MHz
Frequency range (Max) 20 GHz
Dynamic range -40 dBm to +20 dBm
Input connector 3.5 mm, male
Max peak-to-avg ratio 55 dB
Internal Bandwidth 10 MHz, typical
Timebase ±50 ppm, typical
Sample rate 500 kS/s
Measurement speed 2000 readings/s
Max avg power +20 dBm (100 mW)
Damage Level: +23 dBm (200 mW)
Max pulse power +20 dBm (100 mW)
Damage Level: +23 dBm (200 mW)
Trigger in / out TTL compatible
Damage Level: 5.5 V max, -0.5 V min
Rate: 1 Hz to 750 kHz, typical
USB Interface Version: 2.0 Full speed (11 Mb/s)
Dimensions 2.9" L x 1.9" D (74 x 48 mm)
Brand Tektronix
Model PSM5410
Manufacturer number PSM5410
