DO-20604-65
Call 1-888-358-4712 for availability.
Qty:
- Available for sale only in the United States
- Perfromance you need at a price you can afford
- Applications
- Digital Design and Debug
- Video Installation and Service
- Power Supply Design
- Tellecommunications and Mask Testing
- Manufacturing Test
- QuickMenu user interface, 11 languages built-in making set up and operation quick and easy
- Plug-in application and communication modules extend the application-specific features needed for the job at hand
- Real-time intensity-graded color display locates and analyzes waveform anomolies that may be elusive or invisible on traditional digital stroage oscilloscopes
- 100, 300 and 500 MHz, 2 or 4 channels, with up to 5 GS/s for all applications
- Lightweight (7 lbs.) compact design (5.9 in depth) saves valuable benchspace and is easy to transport.
- Built-in front panel 2.0 USB host port makes data storage, set ups and documentation simple
- 3 year factory warranty
- Built-in Ethernet and eScope® web-based ''remote control'' allows remote viewing, instrument control, and downloading of waveform data and screen captures from anywhere on the network
- External Trigger (4-Channel): Built-in external trigger allows viewing of all 4 channels while triggering on another
- External Trigger (2-Channel): no need to ''sacrifice'' a channel in order to trigger on another source
- WaveAlet® automatic waveform anomoly detection provides instant 3-D recognition of transients
- Compact, lightweight, battery capable design, with optional plug-in printer, to take you anywhere the job requires
- Front panel USB host port provides easy storage and transfer of measurment data

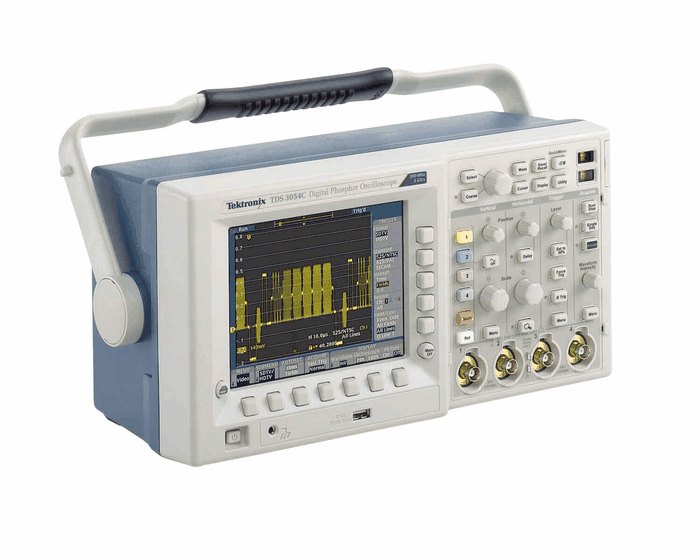

The TDS3000C Series provides a greater level of insight into complex signals using powerful digital phosphor oscilloscope technology with WaveAlert® automatic anomoly detection, OpenChoice™ documentation and analysis solutions with eScope® web-based remote control function allowing you to control these oscilloscopes from anywhere on the network using a PC. Use the five optional application-specific modules to transform these oscilloscopes into specialized instruments for limit testing, telecommunications mask testing, and video troubleshooting. The intuitive front panel interface makes set up and operation simple and the lightweight battery-capable design takes you anywhere your application requires.
What's Included:
one model P6139A, 500 MHz, 10X, passive probe per channel, accessory tray, power cord, protective fron cover, user manual, OpenChoice® PC communication software, and NI LabVIEW SignalExpress™ Tektronix Edition LE software.
| Bandwidth |
500 MHz |
| Product Type |
Multi-Channel Oscilloscopes |
| Bandwidth (MHz) |
500 |
| Record length |
10 k |
| Display |
6-1/2 in. color, TFT-LCD |
| Inputs |
4 |
| Sample rate |
5 GS/s |
| Sample rate (Gs/s) |
5 |
| Channels |
4 |
| Dimensions |
15"W x 7"H x 6"D |
| Brand |
Tektronix |
| Model |
TDS3054C |
