- Accuracy to ±0.5% of velocity full scale
- 0.01 ft/sec flow sensitivity
- Up to 4 programmable relays
- Easy to install, clamp-on design
- Bi-directional flow measurement
- Powerful 30,000 point data logger

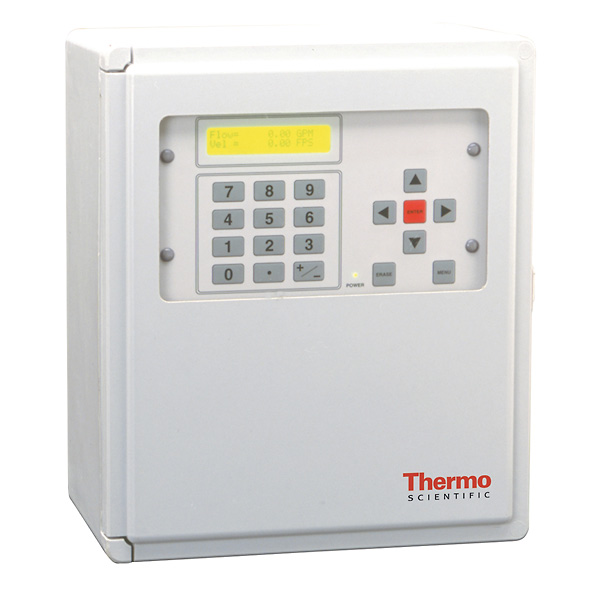

Combining digital signal processing (DSP) with correlation detection methods, the Polysonics DCT6088 features exceptional performance and flexibility. It tolerates higher concentrations of gas
bubbles or entrained solids compared to traditional transit time flowmeters which are principally designed for extremely clean liquid applications only. The non-intrusive, clamp-on transducers can be installed without flow interruption and ensure leak-free measurements with zero pressure drop. The simple, menu-driven operation of the DCT6088 allows the meter to be commissioned in a fraction of the time necessary for competitive transit time flowmeters. Housed in a rugged Nema 4X (IP65) enclosure and qualified for -40°F (-40°C) operation, the DCT6088 is well-suited to most industrial environments. The high resolution, backlit LCD provides excellent visibility even in poorly lit conditions. Outputs include a 12-bit digital, optically-isolated, 4-20 mA analog signal and RS232 serial interface.
Up to four programmable relays can be specified. The relays may be used as a contact output to a remote device such as an alarm, totalizer, sampler or chlorinator. A powerful 30,000 point data logger programmable in intervals of one second or more is also incorporated in the flowmeter.
The plug-in, modular construction of the instrument simplifies field service and, in the unlikely event of failure, permits the boards to be replaced in seconds. The DCT6088 features many parts which are common to other Polysonics flowmeters, dramatically reducing spare parts inventory at sites where multiple meters are in service.
Sample Applications
HVAC
Potable water
Ultrapure liquid
Deionized water
Petroleum products
Water and waste management
What's Included:
Thermo Scientific UltraScan software, communications cables, transducers, and transducer pipe clamps.
